お待たせしました Hebei Jinguang Packing Machine CO.,LTD

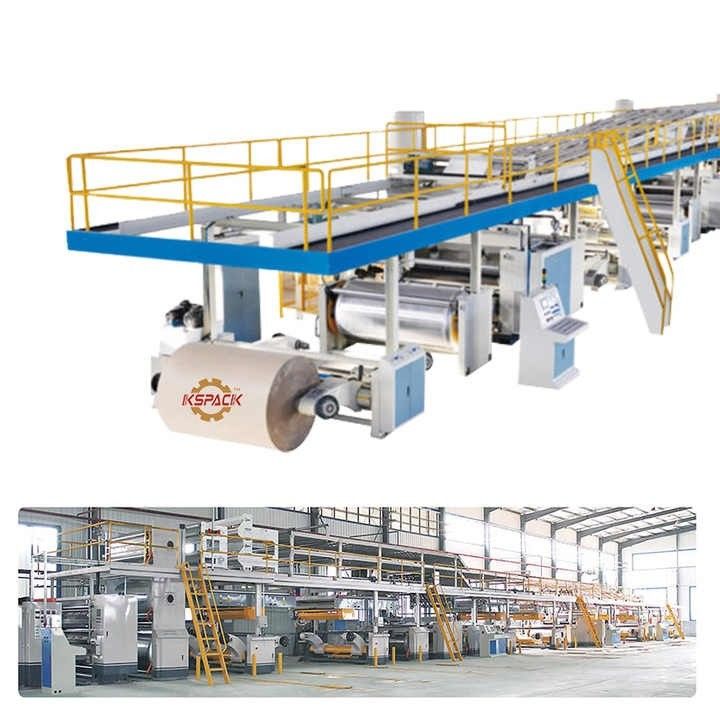

自動3/5/7層の波紋板生産ライン

Basic Properties
Place of Origin: CHAIN
Brand Name: KSPACK
Model Number: KWJ
Trading Properties
Minimum Order Quantity: 1セット
Price: 35600-225600usd/set
Payment Terms: L/C,T/T
Supply Ability: 50セット
Product Summary
※技術パラメータ: 1紙の固定範囲:最大 1800mm,最小 600mm 2.紙の直径:最大 1500mm,最小 350mm 3紙保持器の主軸の直径: ¢242mm 4.空気源の作業圧 (Mpa): 0.4---0.8Mpa 5装置の大きさ: Lmx4*Wmx1.6*Hmx1.5 6.単機重量:最大3000Kg ※水力システムのパラメータ: 1作業圧 (Mpa): 16−18Mpa リフティング液圧シリンダー: ¢100×440mm クランプ液圧シリンダー: ¢63×1300mm 4液圧ステーションモーターの電源: 4KW --380V -- 50Hz 電磁弁の電圧: 220V 50Hz ※主...

Product Details

ハイライト:

5 プライス 波紋板 生産ライン

,

3層の波紋板の生産ライン

,

7 プライス 波紋板の生産ライン

Speed: 0~200m/分
Heating System: 電気,石油,蒸気
Output Paper: 段ボール紙
Material: 45鋼鉄
Condition: 新しい
Power Requirements: 380V 50HZ
Max Speed: 0~200分 毎分
Type: 包装ライン
Product Description

※技術パラメータ:

1紙の固定範囲:最大 1800mm,最小 600mm 2.紙の直径:最大 1500mm,最小 350mm

3紙保持器の主軸の直径: ¢242mm 4.空気源の作業圧 (Mpa): 0.4---0.8Mpa

5装置の大きさ: Lmx4*Wmx1.6*Hmx1.5 6.単機重量:最大3000Kg

※水力システムのパラメータ:

1作業圧 (Mpa): 16−18Mpa リフティング液圧シリンダー: ¢100×440mm クランプ液圧シリンダー: ¢63×1300mm

4液圧ステーションモーターの電源: 4KW --380V -- 50Hz 電磁弁の電圧: 220V 50Hz

※主要購入された部品,原材料,原産地:

主な部分名 原産地 材料モデル
スピンドル ティアンガン 直径 242mm
スイングアーム 国内産 樹脂砂灰色鋳鉄 HT200
壁パネル ジナン 鉄鋼 Q235A 溶接部品
軸承 ハー,ワ,ロー
歯のある紙の頭 国内産 34インチ共有
メイン機器 シュナイダー
ボタン シュナイダー
空気スイッチ シュナイダー
パネウマ部品 日本SMCまたは台湾AirTAC
水力発電所 山東・ジンナン
多点ブレーキポンプ チャン州・シュナイダー


※紙の荷乗車,ガイドレール



※構造特点:※構造的特徴:

★全線は埋葬され,メインフレームは14号管鋼と20mm冷引丸鋼で溶接され,地下レールの長さは6000mmです.

★各紙柄には,2つの紙の配送車があり,両側から同時に紙を積み,紙巻を押すことができます.

:※主要購入された部品,原材料,原産地

主な部分名 ブランドや起源 材料モデル
軌跡と紙の荷乗車 タンシャン鉄鋼またはジナン鉄鋼 14チャンネル鋼 Q235A 鋼筋
軸承 ハー,ワ,ロー
