お待たせしました Hebei Jinguang Packing Machine CO.,LTD

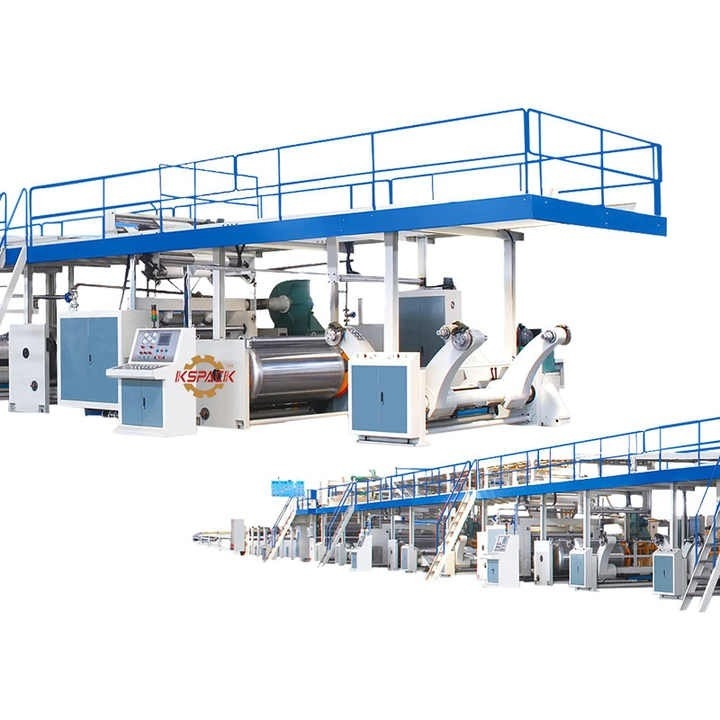

45 鋼質のゴールド紙板の生産ライン 速度 0~200m/min 急速な生産のために

Basic Properties
Place of Origin: CHAIN
Brand Name: KSPACK
Model Number: KWJ
Trading Properties
Minimum Order Quantity: 1セット
Price: 11500-15500usd/set
Payment Terms: L/C,T/T
Supply Ability: 月60セット
Product Summary
R06B 表面 (コア) の紙を予熱するシリンダー ※RG-3-600 トリプルプレヒーター ※構造的特徴: ★前熱ロールは,国家標準の I 級圧力容器に準拠しており,圧力容器の証明書と検査証明書が付属しています. ★各ロールの表面は細かく磨き,精密磨き後に硬いクロムで塗装されています.表面摩擦は小さく耐久的です. ★包装角の電気調整,包装角は360°以内に回転して紙の加熱面積を調整できます. ★オートロック機能を持つ,2段階の減速器を採用し,包装角を調整します. ★前熱ロールは蝶の頭のデザインを採用し,蒸気で加熱されます. ※技術パラメータ: 12. 予熱ロールの直径: ¢600mm 3巻き...

Product Details

ハイライト:

200m/min 波紋紙板の生産ライン

,

迅速な波紋紙板の生産ライン

Type: 包装ライン
Speed: 0~200m/分
Max Speed: 0~200分 毎分
Condition: 新しい
Automatic Grade: オートマティック
Material: 45鋼鉄
Keyword: 波形-板生産ライン
Output Paper: 段ボール紙
Product Description

R06B 表面 (コア) の紙を予熱するシリンダー



※RG-3-600 トリプルプレヒーター



※構造的特徴:



★前熱ロールは,国家標準の I 級圧力容器に準拠しており,圧力容器の証明書と検査証明書が付属しています.

★各ロールの表面は細かく磨き,精密磨き後に硬いクロムで塗装されています.表面摩擦は小さく耐久的です.

★包装角の電気調整,包装角は360°以内に回転して紙の加熱面積を調整できます.

★オートロック機能を持つ,2段階の減速器を採用し,包装角を調整します.

★前熱ロールは蝶の頭のデザインを採用し,蒸気で加熱されます.

※技術パラメータ:

12. 予熱ロールの直径: ¢600mm

3巻き角の調整範囲: 360°回転

4巻き角軸直径: ¢89mm×2

5蒸気温: 150~180°C 6.蒸気圧: 0.8-1.3Mpa

7装置のサイズ: Lmx3.3*Wmx1.1*Hmx1.3

8単機重量: 最大 1500Kg

9動作電源: 380V 50Hz

10モーター電源: 370W 短時間 (S2) 作業システム

※主要購入された部品,原材料,原産地:

主な部分名 ブランドや起源 材料モデル
蒸気回転関節 クアンチョウ・ユージー
前熱シリンダー ハンドン・スチールまたはジナン・スチール Q235B 圧力容器のプレート
軸承 ハー,ワ,ロー
枕ブロックのベアリング ゼジアン 第5環
減速機 台湾 シェンバン
コンタクター シュナイダー
包み角軸   国内標準のシームレス鋼管 ¢110
北京 浮遊機
